Range hood solution
Xiner Xiner Loading... 2018-12-03

Program Highlights:

  • Sensorless Permanent Magnet Motor FOC Control Technology
  • Quick start, up to 400RPM in 1.5 seconds
  • Constant air volume control / constant power control optional

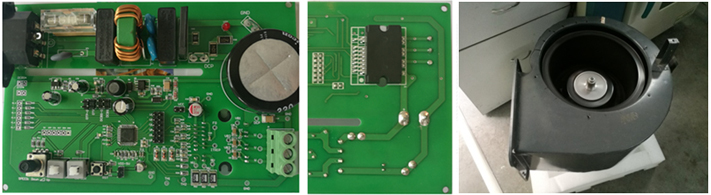

hood hood solution

Key:

IPM XNM50550AT (ATS) 1PCS
IPM XNM50550AT (ATS) 1PCS
IPM XNS06S82F6 1PCS

Performance metrics:

Parameters Metrics
Input voltage 165-265V AC
Input frequency 50/60Hz
Maximum output power 300W
Modulation frequency 15KHz
Maximum speed 2000 RPM
control method FOC
Current sampling method Three resistor
Protective function Overcurrent, overvoltage, undervoltage, overtemperature, stall protection
Length, width and height 150mm*100mm*40mm
